Model |
SV402 (F9347B) |
SV402 (F9347C) |
Magnification |
16x-48x |
20-60x |
Objective lens diameter |
60mm |
70mm |
Field of View (Degree) |
38°- 54° |
38°- 54° |
Field of View (ft/1000yds) |
126ft - 57ft |
99ft - 48ft |
Field of View (m/1000m) |
42m – 19m |
33m – 16m |
Resolution (") |
≦3.2" |
≦2.8" |
Exit Pupil (mm) |
3.8mm-1.3mm |
3.5mm-1.2mm |
Eye Relief (mm) |
14mm |
14mm |

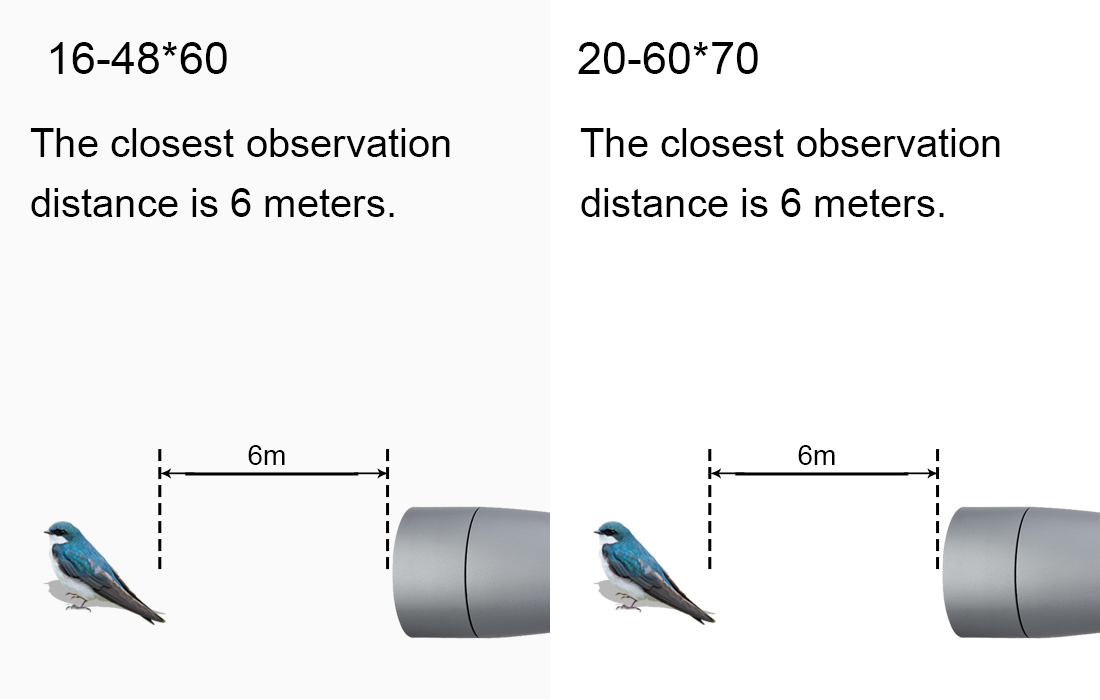

Near Focus (m) |
5m |
6m |
Waterproof |
YES /IPX3 |
YES /IPX3 |
Nitrogen Filled |
Yes |
Yes |
Prism Material |
Bk7 |
Bk7 |
Prism Coating |
Silver + MC |
Silver + MC |
Lens Pcs/Groups |
7pcs/5groups |
7pcs/5groups |
Lens Coating |
Fully Multi Coated |
Fully Multi Coated |
Eye Cup Type |
Fold Down |
Fold Down |
Net Weight |
980g |
1200g |
Dimension |
340x100x140mm |
365x120x160mm |

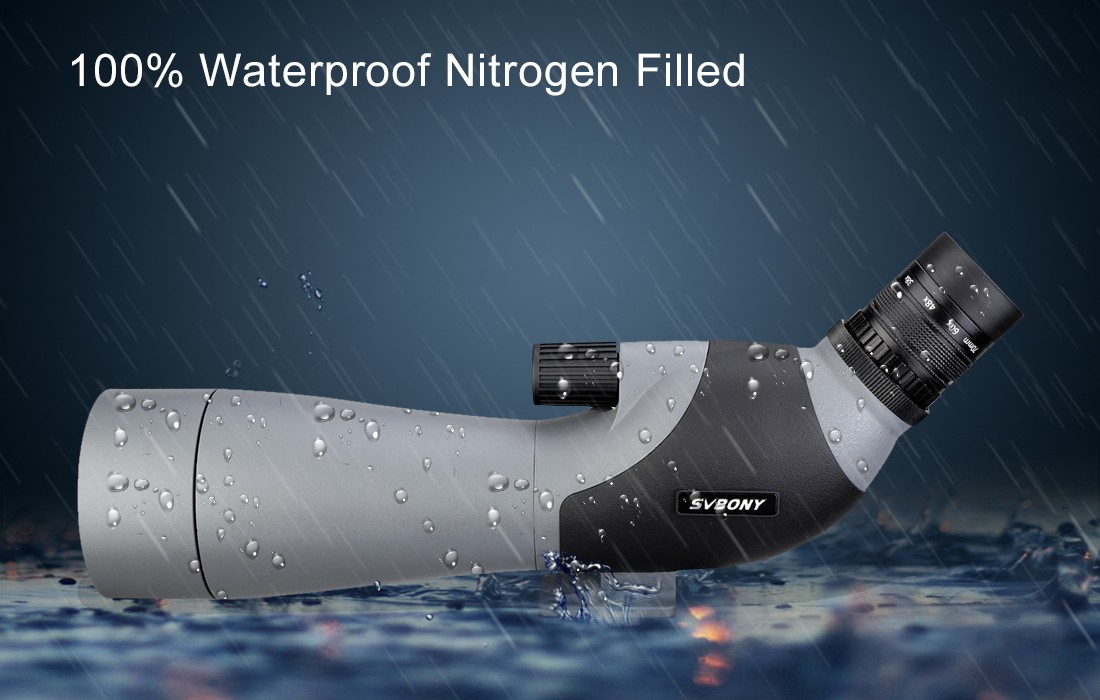

1.It is nitrogen-filled, completely waterproof, and fogproof. You could enjoy hunting even in wet weather
2.BK7 prism and FMC (Fully Multi-Coated) optics, increasing light transmission through the optical path to deliver crisp, high contrast images

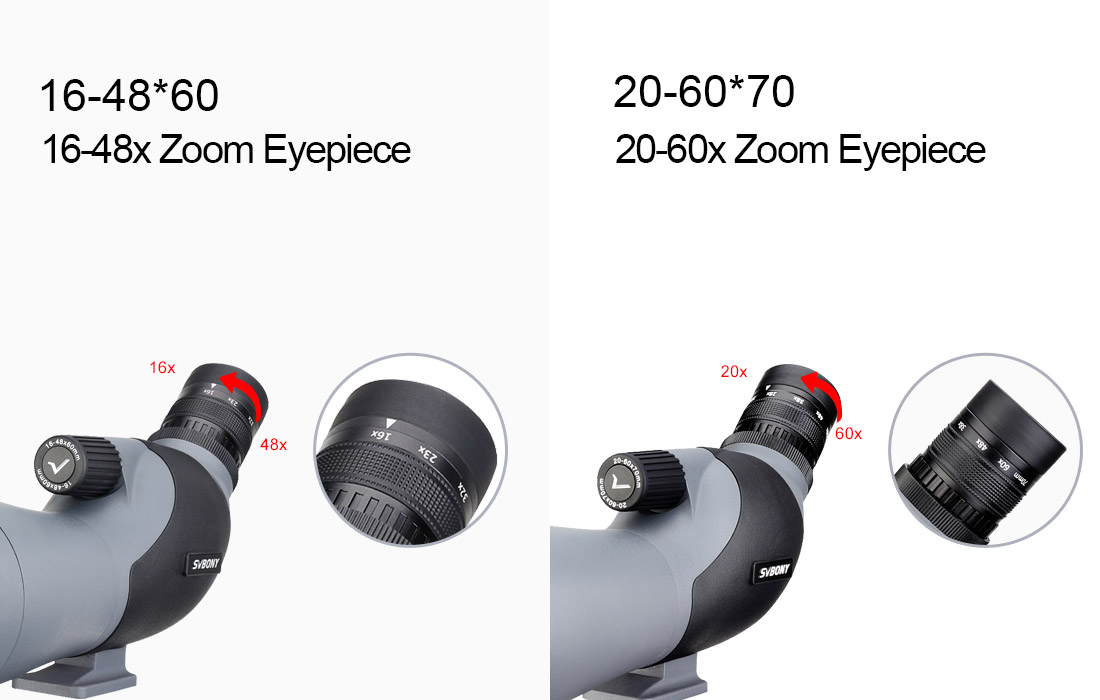

3.20-60x/16-48x zoom eyepiece can give you a wide field of view for general viewing and detailed up-close viewing when needed

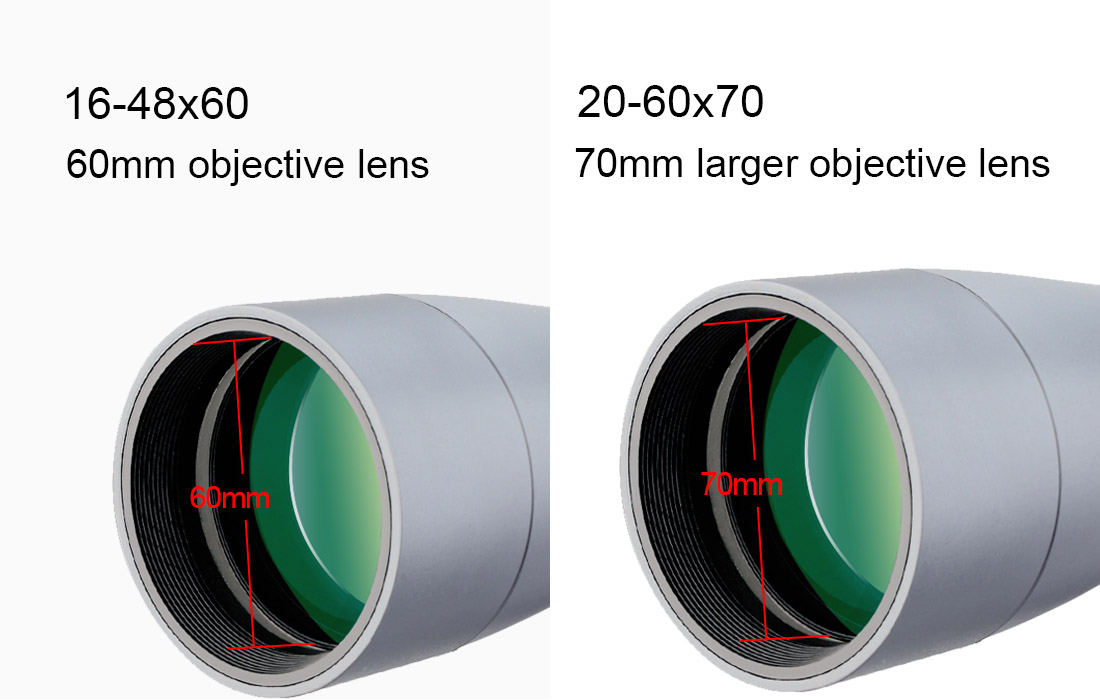

4. 60mm/70mm objective lens diameter can give you a clear and bright field of vision
